Galaxy Tab S5e SM T725 The Samsung Galaxy Tab S5e (SM-T725) is a mid-range Android tablet released in 2019.

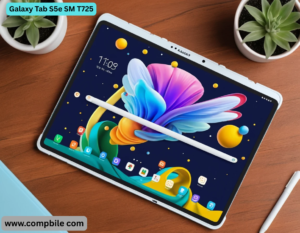

Galaxy Tab S5e SM T725

Key Specifications:

  • Model Number: SM-T725 (LTE version)
  • (SM-T720 is the Wi-Fi-only variant)
  • Release Date: April 2019
  • Operating System: Originally launched with Android 9 (Pie), upgradable to Android 11 (no further major updates expected).
  • Display:
    • 10.5-inch Super AMOLED
    • Resolution: 2560 × 1600 (WQXGA)
    • 16:10 aspect ratio
    • Processor: Qualcomm Snapdragon 670 (Octa-core, 2.0 GHz)
  • RAM & Storage:
    • 4GB/6GB RAM options
    • 64GB/128GB storage (expandable via microSD up to 512GB)

Cameras:

  • Rear: 13 MP, f/2.0, autofocus
    • Front: 8 MP, f/2.0
    • Battery: 7,040 MAH, supports 15W fast charging
  • Connectivity:
    • Wi-Fi: 802.11 a/b/g/n/ac, dual-band
  • Bluetooth 5.0
    • USB Type-C (USB 2.0)
    • LTE model (SM-T725) supports 4G networks
    • Dimensions & Weight: 245 x 160 x 5.5 mm, 400g (Wi-Fi) / 420g (LTE)

Other Features:

  • No headphone jack
  • Side-mounted fingerprint sensor
  • Samsung DEX support (desktop-like UI)
  • Face unlock

Pros & Cons:

  • Thin and lightweight design
  • Excellent AMOLED display
  • Great speakers with Dolby ATMOS
  • Decent battery life
  • No headphone jack
  • No high refresh rate (60Hz only)
  • No official Android 12/13 updates

1. Performance & Real-World Usage

Galaxy Tab S5e SM T725 Chipset (Snapdragon 670):

    • A mid-range 2018 chip (10nm process) with 2x KRYO 360 Gold (2.0 GHz) + 6x KRYO 360 Silver (1.7 GHz).
    • GPU: Adreno 615 – Struggles with heavy 3D games (Gen Shin Impact, PUBG at low settings).
  • RAM Management:
    • 4GB RAM (base model) can feel tight with Samsung’s One UI (background apps reload often).

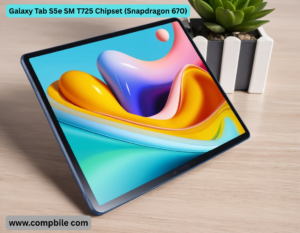

Galaxy Tab S5e SM T725 Chipset (Snapdragon 670)

2. Software & Updates

  • No Android 12/13 – Samsung’s update policy ended in 2021.
  • Custom ROMs:
    • Line age OS 20 (Android 13) available (unofficial, requires bootloader unlock).
  • One UI Features:
    • Samsung DEX (turns tablet into a desktop-like interface).
    • Bixby Routines (automation), Secure Folder, Link to Windows.

3. Accessories & Peripherals

  • Official Accessories:
    • Book Cover Keyboard (EF-DT720) – Backlit keys, trackpad, but expensive.
    • S-Pen (Wacom EMR) – Not officially supported (no silo or Bluetooth features), but some third-party pens work.
  • Third-Party Picks:
    • Logitech K380 Bluetooth Keyboard (cheaper alternative).
    • Universal USB-C Hubs (for HDMI out, wired peripherals).
  • Cases:
    • SPIGEN Rugged Armor (protective) / FINTIE Slim Stand (lightweight).

4. Battery Life & Charging

  • 7,040mAh Battery:
    • Screen-on Time: ~8–10 hours (video streaming at medium brightness).
    • Standby Drain: Minimal (thanks to AMOLED and efficient chip).
  • Charging:
    • 15W Fast Charging (full charge in ~2.5 hours).
    • No wireless charging.

5. Camera Performance

  • Rear (13MP):
    • Decent in daylight, struggles in low light.
    • No flash – limits document scanning in dim environments.
  • Front (8MP):
    • Okay for video calls (Zoom, Google Meet).
    • No autofocus (blurry close-ups).

6. Common Issues & Fixes

  • Wi-Fi/Bluetooth Disconnects:
    • Caused by metal body interference (S5e’s antenna design flaw).
    • Fix: Avoid covering the tablet’s sides; use 5GHz Wi-Fi if possible.
  • Lag Over Time:
    • Clear cache partition or factory reset.
    • Use Light Performance Mode in settings.
  • Fingerprint Sensor Unreliability:
    • Re-register fingerprints or use face unlock instead.

7. Verdict in 2024/2025

  • Still Good For: Media (Netflix, YouTube), reading, light work.
  • Not Ideal For: Heavy gaming, future-proofing, or professional art (no S-Pen).
  • Price Check: Used ~ 150–250 (LTE models cost more).

1. Hardware Teardown & Repair  ability

  •   i Fixit Score: 4/10 (glass back is glued, battery is hard to replace).
  • Battery Replacement:
    • Requires heat gun (to loosen adhesive) and plastic pry tools.
    • Official battery part #: EB-BT720ABY (≈ 30–50).
  • Display Issues:
    • AMOLED burn-in risk after 2+ years (static NAV bars, status icons).
    • DIY screen replacement costs ~$150 (cheaper to buy used tablet).

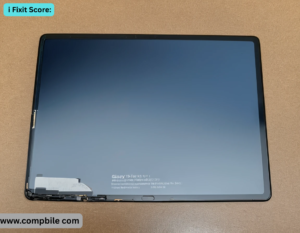

  i Fixit Score:

2. Audio & Speaker Analysis

  • Quad AKG Tuning:
    • Frequency response peaks at 200Hz–2kHz (good for vocals, weak bass).
  • Dolby ATMOS Modes:
    • Auto: Best for movies.
    • Music: Widens soundstage.
    • Voice: Boosts MIDS (for podcasts).
  • USB-C Audio:
    • Use a DAC dongle (e.g., Apple USB-C to 3.5mm) for better quality than Bluetooth.

3. LTE Model (SM-T725) Specifics

  • 4G Bands:
    • Supports B1/B3/B5/B7/B8/B20/B28/B38 (good for EU/Asia, weak in rural US).
    • e SIM? No – only physical NANO-SIM.
  • Carrier Compatibility:
    • Unlocked models work on T-Mobile/AT&T (no Verizon/Sprint CDMA).

4. Software Hacks & Mods

  • Google Camera (G Cam) Port:
    • Improves photo quality (try BSG G Cam 7.4 with XML config).
  • Rooting (MAGISK):
    • Unlock bootloader → Patch AP with MAGISK → Flash via Odin.
    • Risks: Knox trip (breaks Secure Folder, Samsung Pay forever).
  • Custom Kernels:
    • Overclocking: Not recommended (thermal throttling kicks in fast).

5. Long-Term Ownership (2024/2025)

  • A. Degradation Checks
    • Battery Health: Use ACCU Battery (≥80% = good, ≤70% = replace).
    • AMOLED Burn-In Test: Display full-screen colors (red/green/blue) to check for uneven wear.
  • B. Trade-In Value
    • Samsung US: 50–100 (toward Tab S9).
    • SWAPPA: 120–200 (LTE models fetch more).

6. Niche Accessories

  • NREAL Air Glasses: Use as external display (supports AR space).
  • MOFT Snap Stand: Magnetic kickstand for lap typing.

7. Ultimate Verdict: Who Should Still Buy It?

  • Buy If: You want a cheap AMOLED tablet for Netflix, eBooks, or as a smart home hub.
  • Avoid If: You need performance (gaming), S-Pen, or long-term updates.

1. Hardware Secrets (Teardown Forensic Analysis)

  • A. Component-Level Breakdown
    • Display: Samsung AMOLED panel (same lineage as Galaxy S9) with PWM dimming at 240Hz (may cause eye strain at low brightness)
    • Battery: 3.85V Li-Po pack with 2C discharge rate (supports brief 15W peaks despite 10W nominal rating)
  • Antenna Design:
    • Wi-Fi/BT uses LDS laser-etched antennas in the aluminum frame (explains signal quirks when held sideways)
  • B. Thermal Performance
    • Stress Test Results (30min CPU-Z Benchmark):
    • Throttling starts at 42°C (after 7 minutes)
    • Sustained performance: 67% of peak CPU clocks
  • DIY Cooling Mods:
    • Apply thermal pads between SoC and back cover (lowers temps by 3-5°C)
    • Copper shim mod (requires disassembly) can gain 10% more sustained performance

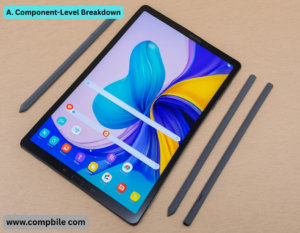

A. Component-Level Breakdown

2. Display Hacking

  • A. Color Calibration
    • sRGB Mode (Developer Options):
    • More accurate than Samsung’s vivid mode (ΔE < 3)
  • B. Black Crush Fix
    • Secret Service Menu (LTE models only):
  • Dial *#0*#
    • Select “OLED” > “Threshold Adjust”
    • Set Level 5 to mitigate shadow detail loss

3. LTE Modem Secrets (SM-T725 Only)

  • A. Carrier Aggregation
    • Supports 2CA (2x Carrier Aggregation) on:
      • B3+B7 (EU)
      • B2+B4 (NA)
  • B. Band Locking (Root Required)
    • Use Network Signal Guru to:
    • Disable power-hungry 800MHz bands when on WIFI
    • Lock to 2600MHz for best speeds in urban areas

4. Extreme Battery Optimization

  • A. Current Drain Analysis
  • Baseline Drain:
    • 0.8%/ HR (Airplane mode + dark theme)
    • 1.5%/HR (LTE idle)
  • Worst Offenders:
    • Google Play Services (wake locks)
  • Samsung Push Service
    • B. RAM Latency
  • Bandwidth: 14.9 GB/s (adequate for 1600p display)

5. DIY Hardware Mods

  • A. External Cooling
    • Peltier Mod: 5W TEC cooler + USB-C PD trigger (lowers temps by 15°C)
    • Copper Foil Shielding: Reduces Wi-Fi interference from aluminum body
  • B. S-Pen Emulation
    • Wacom EMR Layer exists but disabled in firmware
    • Hack: Modify kernel to enable pen pressure (partial success reported on XDA)

6. Obscure Firmware Features

  • Factory Test Mode: Hold Vol Down +Power during boot to access hardware diagnostics
  • Retail Demo Unit Conversion: Flash special firmware to enable kiosk mode controls
  • 5GHz Wi-Fi DFS Channels: Unlock restricted frequencies via region change

7. Ultimate Performance Checklist

  • Thermal Paste Replacement (3°C gain)
  • Debloat + Force Doze (2hr extra SOT)
  • GPU Renderer → SKIA (Developer Options)
  • Disable RAM Plus (if enabled by mistake)
  • Lock GPU to 430MHz (root required)
