Materials Of course. The term “materials” is incredibly broad. It refers to the substances from which all things are made. They are the building blocks of the physical world. This guide will break down materials into categories, explain their properties, and discuss their applications.
The Main Categories of Materials
- Materials can be broadly classified into four major groups, plus one increasingly important modern category.
Metals
- Metals are typically strong, shiny, malleable (can be hammered into sheets), ductile (can be pulled into wires), and good conductors of heat and electricity.
Examples:
- Iron & Steel (an alloy): The backbone of construction (buildings, bridges, cars).
- Aluminum: Lightweight, used in aircraft, cans, and ladders.
- Copper: Excellent conductor, used in electrical wiring and plumbing.
- Titanium: High strength-to-weight ratio, biocompatible; used in aerospace and medical implants.
- Gold & Silver: Precious metals used in jewelry, electronics, and as a monetary standard.
Polymers
- Polymers are large molecules made of repeating chains of smaller units (monomers). They are often organic, based on carbon. Most are lightweight, inexpensive, and good insulators.
Examples:
- Plastics: Polyethylene (bottles, bags), PVC (pipes), Nylon (fabrics, gears), Polypropylene (containers, car parts).
- Elastomers (Rubbers): Natural rubber (tires), Silicone (baking mats, medical devices).
- Fibers: Polyester (clothing), Kevlar (bulletproof vests).
Ceramics
- Ceramics are typically compounds between metallic and non-metallic elements (e.g., oxides, nitrides, carbides). They are hard, brittle, heat-resistant, and excellent electrical insulators.
Examples:
- Traditional: Clay (pottery, bricks), Glass (windows, containers), Cement and Concrete (construction).
- Advanced: Silicon Carbide (abrasives, car brakes), Alumina (spark plug insulators, biomedical implants), Zirconia (artificial gemstones, thermal barrier coatings).
Composites
- Composites are engineered materials made from two or more constituent materials with significantly different properties. The combined material has properties superior to its individual components.
Examples:
- Fiberglass: Glass fibers embedded in a polymer matrix. Used in boat hulls, bathtubs.
- Carbon Fiber Reinforced Polymer (CFRP): Extremely strong and lightweight. Used in high-performance aircraft, supercars, and sporting goods (bicycles, golf clubs).
- Plywood: Layers of wood veneer glued together.
- Concrete: A composite of cement (binder), sand (fine aggregate), and gravel (coarse aggregate).

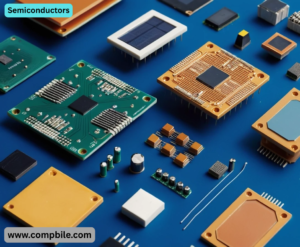

Semiconductors
- This category is defined by its electrical properties, which sit between conductors (metals) and insulators (ceramics). Their conductivity can be precisely controlled, making them the foundation of modern electronics.
Examples:
- Silicon (Si): The primary material for computer chips and solar cells.
- Gallium Arsenide (GaAs): Used in high-speed electronics and LEDs.
Key Material Properties
- Engineers select materials based on the properties required for a specific application.
- Mechanical Properties: How a material reacts to forces.
- Strength: Resistance to deformation.
- Hardness: Resistance to scratching or indentation.
- Elasticity: Ability to return to original shape after a force is removed.
- Ductility: Ability to be stretched into a wire.
- Toughness: Ability to absorb energy and resist fracture (impact resistance).
- Thermal Properties: How a material reacts to heat.
- Melting Point: The temperature at which it turns from solid to liquid.
- Thermal Conductivity: Ability to conduct heat.
- Ther mal Expansion: How much it expands when heated.
Electrical & Magnetic Properties:
- Electrical Conductivity: Ability to conduct electricity.
- Magnetic Permeability: Ability to be magnetized.
- Optical Properties: How a material interacts with light.
- Transparency, Translucency, Opacity.
- Corrosion Resistance: Resistance to degradation (e.g., rusting, oxidation).
- Flammability: How easily it catches fire.
Advanced and Future Materials
Materials science is constantly evolving. Key areas of research include:
- Nanomaterials: Materials with structural features on the scale of nanometers (billionths of a meter). They often exhibit unique optical, electrical, and mechanical properties (e.g., carbon nanotubes, graphene).
- Biomaterials: Materials engineered to interact with biological systems for medical purposes (e.g., titanium hip implants, biodegradable sutures, hydrogels for drug delivery).
- Smart Materials: Materials whose properties can change in response to an external stimulus (e.g., temperature, light, stress).
- Examples: Shape-memory alloys (e.g., glasses that bend back into shape), piezoelectric materials (generate electricity from mechanical stress, used in sensors).
- Sustainable Materials: Materials focused on reducing environmental impact.
- Examples: Bioplastics (derived from renewable sources), recycled composites, materials designed for easy disassembly and recycling.
The Core Principle: Structure → Properties → Performance
- The fundamental tenet of materials science is that a material’s properties are determined by its internal structure at various scales. These properties then dictate how the material performs in a real-world application.
The Structural Hierarchy:
- Atomic Structure: The type of atoms and the primary bonds between them (ionic, covalent, metallic). This determines fundamental categories.
- Crystal Structure (Microstructure): How atoms are arranged in a solid. For example, the arrangement of carbon atoms makes the difference between soft, slippery graphite and incredibly hard diamond.
- Macrostructure: Features visible to the naked eye, like pores, surface coatings, or layers in a composite.
- Manipulating the structure at any of these levels allows scientists to engineer materials with specific properties.
Advanced Material Properties & Concepts
Beyond the basic properties, engineers consider more complex behaviors:
- Fatigue Strength: A material’s resistance to failure under repeated cyclic loading. This is critical for parts like aircraft wings or car axles that experience constant vibration.
- Creep Resistance: The tendency of a material to slowly and permanently deform under constant mechanical stress, especially at high temperatures. This is a key design factor for jet engine turbine blades.
- It’s not just about being non-toxic; it must not provoke an inflammatory response or cause blood clotting (for implants).
- Crystallinity vs. Amorphous: Polymers and ceramics can have ordered (crystalline) regions or disordered (amorphous) regions. The ratio between them greatly affects properties like strength, transparency, and melting point.
The Materials Selection Process
Choosing the right material is a systematic trade-off. Here’s a simplified version of the process an engineer might follow:
- Define Function: What must the component do? (e.g., Transmit a force, hold an electrical charge, insulate heat)
- List Constraints: What non-negotiable conditions must it withstand? (e.g., Must operate at 500°C, must not corrode in saltwater, must cost <$5/kg)
- (e.g., Minimize weight, maximize speed, minimize cost)
- Screen Materials: Use databases and “Materials Selection Charts” to eliminate unsuitable candidates. (e.g., A chart plotting Strength vs. Density would quickly show why we use composites for airplanes instead of metals).
- Evaluate and Test: Prototype with the top candidate materials and test them under real-world conditions.
Deeper Dive into Modern Material Categories
Nanomaterials
- Their high surface-area-to-volume ratio gives them unique properties.
- It is the strongest material ever tested, an excellent conductor of heat and electricity, and nearly transparent.
- Carbon Nanotubes (CNTs): Cylindrical rolls of graphene. Incredibly strong and stiff for their weight, and excellent electrical conductors. Used to strengthen composites and in some electronics.
- Quantum Dots: Nanoscale semiconductors that fluoresce with very specific colors based on their size. Used in high-end display screens (QLED) and medical imaging.
Shape Memory Alloys (SMAs)
- “Smart materials” that can return to a pre-defined shape when heated.
- How it works: A solid-state phase change allows the metal to remember two shapes (e.g., straight and coiled).
- Application: Stents in medicine (a compact stent expands to shape inside a blood vessel), actuators in aerospace, self-bending eyeglass frames.
Metamaterials
- Artificially engineered materials designed to have properties not found in naturally occurring materials. Their properties come from their designed structure, not their composition.
- Application: “Invisibility cloaks” that bend light or sound waves around an object, superlenses that see details smaller than the wavelength of light.
Self-Healing Materials
- Materials that can autonomously repair damage.
How it works:
- Microcapsules: Tiny capsules of healing agent (like glue) are embedded. When cracked, the capsules break and release the agent to seal the crack.
- Reversible Chemistry: Uses chemical bonds that can break and reform, like in some self-healing polymers.
- Application: Self-healing paints for cars, longer-lasting composites for aerospace, and concrete that seals its own cracks.
Biomimetic Materials
- Materials engineered to mimic nature’s ingenious designs.
Examples:
- Lotus-Effect Surfaces: Superhydrophobic surfaces that mimic the lotus leaf, causing water to bead up and roll off, carrying dirt with it. Used in self-cleaning paints and fabrics.
- Gecko Tape: Synthetic adhesives that mimic the microscopic hairs on a gecko’s foot, allowing for strong but reversible dry adhesion.
